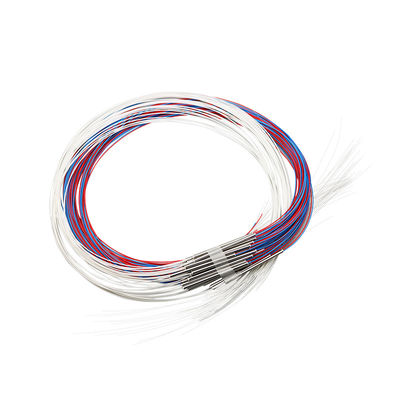

1310/1550nm Dual-window 0.9mm Mini Tube 1x2 or 2x2 Fused Biconical Taper (FBT) Single-mode Standard Optical Splitter

  • 1310/1550nm Dual-window 0.9mm Mini Tube 1x2 or 2x2 Fused Biconical Taper (FBT) Single-mode Standard Optical Splitter
  • 1310/1550nm Dual-window 0.9mm Mini Tube 1x2 or 2x2 Fused Biconical Taper (FBT) Single-mode Standard Optical Splitter
  • 1310/1550nm Dual-window 0.9mm Mini Tube 1x2 or 2x2 Fused Biconical Taper (FBT) Single-mode Standard Optical Splitter
  • 1310/1550nm Dual-window 0.9mm Mini Tube 1x2 or 2x2 Fused Biconical Taper (FBT) Single-mode Standard Optical Splitter
Place of Origin Shanghai
Brand Name Yogel
Certification ISO9001
Model Number 1x2FBTW
Minimum Order Quantity 1
Price Negotiate
Packaging Details Blister boxes, Cartoon
Delivery Time 3-7days
Payment Terms L/C, T/T, Western Union
Supply Ability 50000pcs/month
Product Details
Product Name Mini Tube FBT Splitter Wavelength 1310/1550nm
Splitting Ratio 50/50 (Optional) Insertion Loss ≤3.4 DB
PDL ≤0.10dB Directivity ≥55 DB
Jacket 0.9mm PVC/LSZH Fiber Lenght 1m
Connector SC/APC Application FTTH Fiber Network, Telecommunication
Operating Temperature -40℃ To +70℃ Dimensions Ф3.0mm×54mm
High Light

0.9mm fiber optic coupler splitter

,

1550nm fiber optic coupler splitter

,

1x2FBTW fiber optic coupler splitter
Leave a Message
Product Description

1310/1550nm 1x2 FBT Fiber Optic Coupler

Stainless-Steel Tube with 0.9mm SC/APC Connectors





Description



The Fiber optic coupler is a device applicated in optical fiber systems with one or more input fibers and one or several output fibers. For the fused optical splitter, it can be divided into different ratios, such as 50/50, if the split is even, or 80/20 if 80% of the signal goes to one side and only 20% to the other. As a result of its great function, the optical splitter is a very important part of passive optical networks (PON). FTB Fused fiber splitter (coupler) can be Singlemode (1310/1550nm) or Multimode (850nm). The cable diameter can be 0.9mm, 2.0mm, and 3.0mm. Single window, dual window, and three-window are available.

Singlemode Dual Window Couplers are Single Mode Splitters with a defined split ratio from one or two input fibers to 2 output fibers. Available split counts are 1x2 and 2x2 in split ratios of 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, and 99/1. Dual Window Couplers are available with 0.9mm loose tube single mode fiber or 250um bare fiber and terminated or unterminated as requested.

Unconnectorized DWCs come with no connectors for easy splicing or connectorization. Connectorized DWCs are available with choices of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.





Features



* Low Insertion

* Low PDL

* Compact Design

* Good channel-to-channel uniformity

* Wide Operating Temperature: -40°C to +85°C





Specifications



Item Parameter
Operating wavelength (nm) 1310 or 1550, others on request
Operating bandwidth (nm) ± 15
Typical excess loss (dB) 0.07
Insertion loss (dB) 50/50 ≤3.4
45/55 ≤4.1/3.1
40/60 ≤4.4/2.6
35/65 ≤5.2/2.3
33/67 ≤5.4/2.2
30/70 ≤5.7/1.9
25/75 ≤6.6/1.7
20/80 ≤7.6/1.25
15/85 ≤9.2/1.0
10/90 9.2~11.0/≤0.65
5/95 12.0~14.2 /≤0.4
3/97 14.05~16.55/≤0.3
2/98 15.7~18.5/≤0.25
1/99 18.55~21.5/≤0.2
PDL (dB) ≤0.10
Directivity (dB) ≥55
Operating temperature (℃) -40 ~ +85





Ordering Information



1. Different split ratios of the optical power can be selected: 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 4/96, 3/97, 2/98, 1/99...

2. Single window, dual window, three windows, 1310nm, 1490nm, and 1550nm operating wavelengths are all available
3. 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20, 1x24 configurations of splitters are available.

4. 250um bare fiber, 0.9 loose tubes, 2.0mm or 3.0mm LSZH fiber cables can be selected.
5. The length of input or output fibers can be also customized; 1m length is default.
