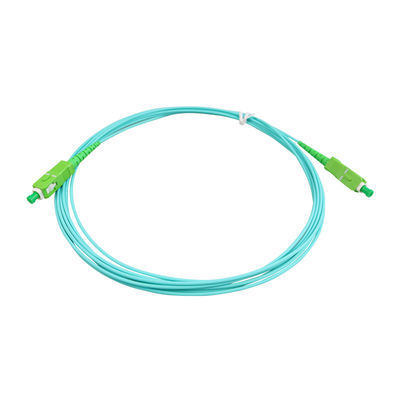

1.6mm SC APC SM Simplex G657A2 Fiber Optic Cable Assembly
| Place of Origin | Shanghai China |
|---|---|
| Brand Name | Yogel or OEM |
| Certification | ISO9000,original |
| Model Number | 1.6mm patch cord |
| Minimum Order Quantity | 1 |
| Price | Negotiate |
| Packaging Details | 100 pieces /carton box |
| Delivery Time | 3-5 days after despoit |
| Payment Terms | Western Union, MoneyGram, T/T, L/C |
| Supply Ability | 10000 pcs/ month |
Product Details
| Product Name | 1.6mm SC APC SM Simplex G657A2 One Fiber Premise Cable Assembliesoptical Fiber Patch Cord | Application | Indoor, FTTH Fiber Network, Telecommunication, Data Center/FTTX/LAN And WAN/CATV Network/Telecommunications Network, RF Device |
|---|---|---|---|
| Insertion Loss | Typ. ≤0.15 DB, Max. ≤0.30 DB | Return Loss | ≥55dB |
| Repeatability | ≤0.10 DB | Changeability | ≤0.20 DB |
| High Light | G657A2 Fiber Optic Cable Assembly,1.6mm Fiber Optic Cable Assembly,1.6mm optical fiber Patch Cord |
||
Product Description
1.6mm SC APC SM Simplex G657A2 one fiber premise cable Assemblies optical fiber Patch Cord
Description
Fiber Optic Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling"
Features
Low insertion loss
High resistance of corrosive
Strong interchanging capability
High return loss
UL standard accessories comply with UL94V-O and ROHS standard
Colors identify
Specifications
| Item | Parameter | ||
| Single Mode | |||
| PC | UPC | APC | |
| Test wavelength | 1310/1550nm | ||
| Insertion loss | Typ. ≤0.15 dB, Max. ≤0.30 dB | ||
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB |
| Repeatability | ≤0.10 dB | ||
| Changeability | ≤0.20 dB | ||
| Durability (1000 Mating) | ≤0.20 dB | ||
| Operation temperature | -40 ~ +80℃ | ||
| Storage temperature | -40 ~ +85℃ | ||
| Connector end | SC/UPC, SC/APC | ||
| Cable jacket | OFNR, LSZH, OFNP | ||
| Cable diameter | 3.0mm, 4.8mm | ||
| Fiber count | Simplex | ||
| Fiber type | Single Mode: G. 657A2 | ||
| Cable length | 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc. | ||
| Fiber brand | Corning, YOFC, TFO | ||
| Fire resistant | IEC 60794-2-30 | ||
| Standards Compliant | ROHS, IEC, GR-326 | ||
*Connector End A *Connector End B *Jacket Cable *Cable Diameter *Fiber Count
ASC = Aangle SC ASC = Aangle SC V = PVC S = 3.0 mm 001 = 1
AFC = Aangle FC AFC = Aangle FC L = LSZH T = 2.0 mm 002 = 2
ALC = Aangle LC ALC = Aangle LC R = OFNR M = 1.6 mm
USC = Ultra SC USC = Ultra SC P = OFNP J = 0.9mm
UFC = Ultra FC UFC = Ultra FC E = PE
UST = Ultra ST UST = Ultra ST U = TPU
ULC = Ultra LC ULC = Ultra LC
XXX = NC
*Fiber Type *Multimode *Cable Length
S1= OS1 PSC = SC MM 0050=0.5M
0050 = 0.5M PFC = FC MM
S2= G.652D PLC = LC MM
S3= G.657A1 PST = SC MM
S4= G.657A2
M1= OM1
M2 = OM2
M3 = OM3
M4 = OM4
M5 = OM5
