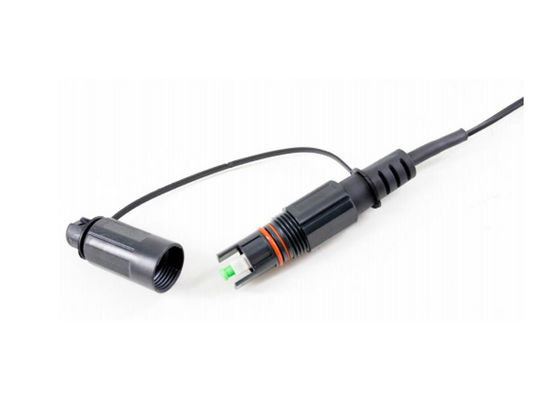

FTTA Long Haul 5.0mm Waterproof Fiber Optic Connector patch cord
| Place of Origin | Shanghai China |
|---|---|
| Brand Name | Yogel |
| Certification | ISO9000 ,ROHS,CE |
| Model Number | Yogel mini sc waterproof connector |
| Minimum Order Quantity | 1 |
| Price | Negotiate |
| Packaging Details | 1 piece/inner bag, 100pcs/pack |
| Delivery Time | 3-5 days after despoit |
| Payment Terms | Western Union, MoneyGram, T/T, L/C |
| Supply Ability | 1000 pcs/ month |
Product Details
| Product Name | FTTA Long Haul Outdoor Fiber Optic Waterproof Connectors For FTTA Patch Cord | Waterproof Level | IP67 |
|---|---|---|---|
| Use For | 3.0-5.0mm Round Optical Cable, FTTH Drop Cable | Application | Outdoor, FTTH Fiber Network, Telecommunication, Data Center/FTTX/LAN And WAN/CATV Network/Telecommunications Network, RF Device |
| Model Name | H Connector | Cable Material | PVC/LSZH |
| Polishing | UPC/APC/PC | Length | 1 .5.10 Meter Or OEM |
| High Light | 5.0mm waterproof fiber optic connector,FTTA waterproof fiber optic connector,5.0mm outdoor fiber optic connector |
||
Product Description
FTTA Long haul Outdoor Fiber Optic Waterproof Connectors for FTTA patch cord
New developed one set of connector and adapter, compatible with that of HUAWEI and Corning. Provide an cost effective, easy, environmental seal and mechanical protection for 1 fibers simplex SC style connections. Inside cover can protect ferrule end face far away scratch when mating with receptacle;
It provides quick installation solutions and has good performance on mating receptacle / Adapter. Cable can be armoured or non-amoured.
The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection. The new industrial integrated flange-mount adapters are designed for tight, side-by-side applications.
Features:
Low Insertion Loss and high return loss
Rugged, excellent kink and crush resistant
Stainless steel tube
Flame retardant characteristics meet the requirements of relevant standards
Available for LC, SC, ST, FC, etc standard connectors
ROHS, REACH and SVHC compliant
Cable Specification:
|
Item |
Data |
|
fiber |
Single mode G.657A2 |
|
Fiber diameter |
7.0mm |
|
Material & color for jacket |
LSZH black |
| Tension member | Aramid fiber |
| Max. attenuation |
≤ 0.4dB/km at 1310nm ≤0.3dB/km at 1550nm |
| Tensile resistance(short term) | 500N(no breakage) |
| Crush resistance(short term/long term) | 1000N/100mm |
| inflaming retarding | IEC 60332-3 |
| Temperature | -40~+70°C |
| Uvioresistant | PASS |
| Authentication | Meet with RoHS &UL |
Application:
Provides superior weather resistance for FTTA and other outdoor applications.
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
Can be installs without special tooling Threaded style coupling Provides bend protection for installation and long term use.
