Outdoor ODVA mini Multi Port SC/LC/MPO IP67 Waterproof Fiber Optic Connector Terminal Box
| Place of Origin | China |
|---|---|
| Brand Name | Yogel |
| Certification | ROHS |
| Model Number | ODVA Terminal Box |
| Minimum Order Quantity | 1Piece |
| Price | Negotiate |
| Packaging Details | 1 piece/plastic bag, 100pcs/inner box, Carton |
| Delivery Time | 3-7 work days after despoit |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100000pcs /Month |
Product Details
| Name | Waterproof Fiber Optic Connector Terminal Box | Water Proof Grade | IP67 |
|---|---|---|---|
| Application | FTTA FTTH BBU RRU RRH LTE & Base Station | Fuction | Waterproof |
| Connector Type | SC/LC/MPO | Quality Control | 100% Test Before Shipping |
Product Description
Outdoor ODVA mini Multi Port SC/LC/MPO IP67 Waterproof Fiber Optic Connector Terminal Box
Description:
FTTA armored Waterproof Patch cord with Multi Port (MTP/MPO/LC/SC) ODVA Terminal junction box
Quality Fiber Optic Terminal Box manufacturers & exporter - buy Multi Port ( MTP / MPO / LC / SC) Fiber Optic Terminal Box , Odva fiber optic junction box from China manufacturer. ODVA BBU RRU Patch Cable is for CPRI application,that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities.
Features:
IP67 Protection, Salt-mist proof
Fully Water-blocked
Wall Seal Design, Easy Operation, Cost-effective Installation
Light Weight, Dustproof and Waterpoof
Application:
FTTA,FTTH Application
3G,4G Base Station
Horizontal and Vertical Cabling
BBU,RRU,RRH,LTE
Technical Data:
The connecting is safe and reliable. Also have the functions of waterproof, dustpoof and fireproof,This connectors widely used in FTTA, Base station, and the outdoor waterpoof condition.
Specificition:
1.Internal inventory redundant optical fiber, convenient in operation and maintenance.
2.Optical fiber can be welding or cold, the applicable scope is wide,especially suitable for the use of multi-storey and high-rise tenants,easy to install, easy to install.
3.Material: ABS new resistance fuel, quality assurance, the flame retardant performance accord withstandard of communication industry, flame retardant grade UL94V - level 0
4.Suitable adapter : MIni-SC, H connector-SC, ODVA-LC,ODVA-MPO,ODVA-MPT.
5.Structure: open type
6.Color: grey (color can be customized)
7.Sealing way: TPE seals
8.Installation method: overhead, hanging.
9.Size (H*W*D)mm : 250* 80*70mm
Connector Parameter:
| Insertion Loss | SM | ≤0.7dB (Typical≤0.5dB) |
| Polish | MM | ≤0.5dB (Typical≤0.2dB) |
| Return Loss | SM | ≥50dB |
| Mechanical | Plug | ≤1000N(Main Cable) |
| Return Loss | Socket | ≤1000N(Branch Cable) |
| Operation Temp. | ≤0.2dB | |
Fiber-to-the-Antenna (FTTA) installation for mobile communication systems:
Next generation mobile communication systems (3G, Wimax, LTE) using remote radio heads yield considerable savings on operational costs (up to 40%) and reduction of capital expenditure for new network roll-outs and upgrades. FOCC is a global expert for FTTA installations and provides complete solutions ranging from planning, product definition, volume production, logistics to installation services. We directly support OEMs, global and local operators, and installers.

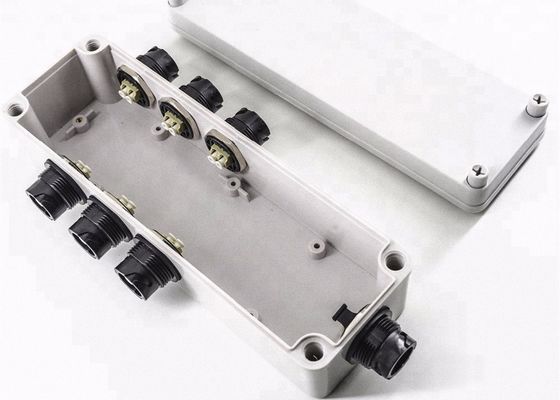

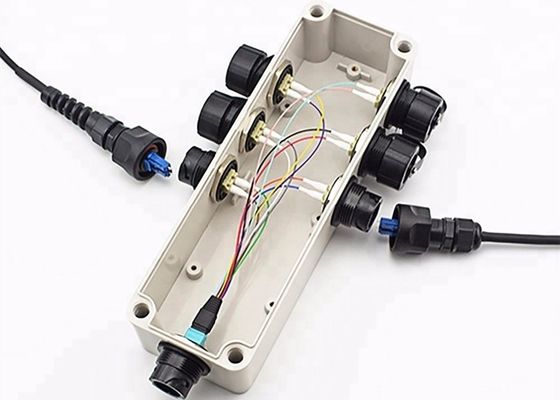

Product pictures :
