Waterproof ODVA SC UPC RRU BBU Outdoor Cable Assemblies
| Place of Origin | China |
|---|---|
| Brand Name | Yogel |
| Certification | ROHS |
| Model Number | ODVA-SC |
| Minimum Order Quantity | 1Piece |
| Price | Negotiate |
| Packaging Details | 1 piece/plastic bag, 100pcs/inner box, Carton |
| Delivery Time | 3-7 work days after despoit |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100000pcs /Month |
Product Details
| Name | Outdoor Waterproof Cable Connector | Water Proof Grade | IP67 |
|---|---|---|---|
| Application | FTTA FTTH BBU RRU RRH LTE & Base Station | Real Factory | Yes |
| Fuction | Waterproof | Type | ODVA |
| High Light | BBU Outdoor Cable Assemblies,RRU Outdoor Cable Assemblies,ODVA Outdoor Cable Assemblies |
||
Product Description

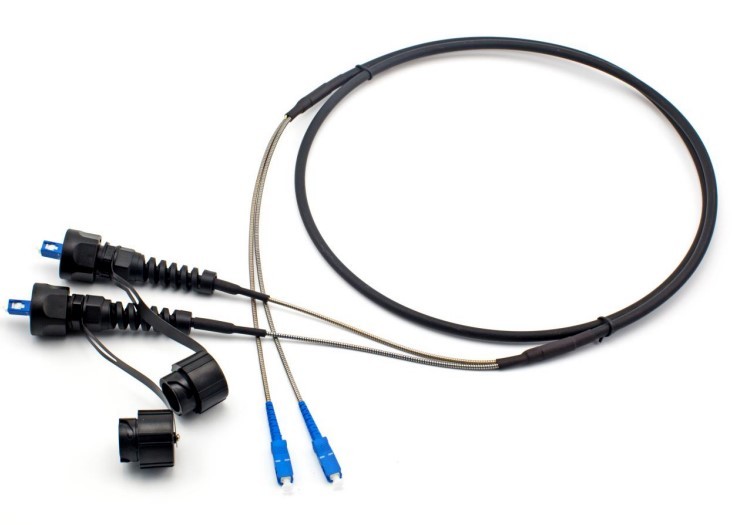

ODVA SC UPC RRU BBU Waterproof Fiber Optic Patch Cord Outdoor Cable Assemblies
Description:
ODVA PDLC BBU RRU Patch Cable is for CPRI application,that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities.
YOGEL’S ODVA PDLC BBU/RRU Patch cables, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling. these patch cables are always sealed with rugged fiber terminal junction boxes that meet the requirements of more antennas on a wireless tower.
With the development of distributed antenna syatems(DAS), ODVA,PDLC connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.
Features:
Various types: It has 3 series- LC duplex, SC simplex and MPO.
Fast connection: the unique spiral structure makes connection easy and fast.
High intensity of tension: it’s suitable for ber cables of φ5.0-7.0mm.
Water and dust proof: there’s rubber cushion inside, the stability is good and the grade canbe IP67.
Complete solutions: we have the relatedcomplete outdoor waterproof boxes, adaptersand solutions.
Typical Usages
FTTA,FTTH Application
3G,4G Base Station
Horizontal and Vertical Cabling
BBU,RRU,RRH,LTE
Typical Advantage
IP67 Protection, Salt-mist proof
Fully Water-blocked
Wall Seal Design, Easy Operation, Cost-effective Installation
Light Weight, Dustproof and Waterpoof
Performance Parameters:
| Connector | End A | Compact RRH/BBU Helix Cover Connector | |||
| End B | DLC (duplex LC),or SC,FC,ST,MPO,MTP...... | ||||
| Fiber Core | 2,4…12 | ||||
| Mode | Singlemode | Multimode | |||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | |||
| Polishment | UPC | APC | UPC | ||
| Insertion Loss(Max.dB) | 0.2 | 0.3 | |||
| Return Loss(Min.dB) | 55 | 60 | 35 | ||
| Mating times | 500 Min | ||||
| Durability(Max.dB) | 0.2 | ||||
| Reaptability(Max.dB) | 0.5 | ||||
| Operating Temperature(℃) | -40~+85 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
Applications:
