IP67 ODVA - LC UPC Fiber Optic Cable Assembly Connector
| Place of Origin | China |
|---|---|
| Brand Name | Yogel |
| Certification | ROHS |
| Model Number | ODVA-LC |
| Minimum Order Quantity | 1Piece |
| Price | Negotiate |
| Packaging Details | 1 piece/plastic bag, 100pcs/inner box, Carton |
| Delivery Time | 3-7 work days after despoit |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100000pcs /Month |
Product Details
| Name | Outdoor Waterproof Cable Connector | Water Proof Grade | IP67 |
|---|---|---|---|
| Application | FTTA FTTH BBU RRU RRH LTE & Base Station | Real Factory | Yes |
| Fuction | Waterproof | Type | ODVA |
| High Light | LC UPC Fiber Optic Cable Assembly,IP67 Waterproof Fiber Optic Cable Assembly,ODVA outdoor waterproof cable connector |
||
Product Description
ODVA - LC UPC Optical Fiber Parts Outdoor Waterproof Cable Connector
Description:
Outdoor waterproof protected ODVA-LC Fiber to the Antenna Rugged Interconnect
To meet the needs of the next generation WiMax and long term evolution(LTE) fiber to the antenna (FTTA) connection design for outdoor use harsh requirements, has released the ODVA-DLC connector system, which provides the remote radio between the SFP connection and the base station, used for Telecom applications. This new product to adapt the SFP transceiver provides the most widely in the market, so that end users can choose to meet the specific requirements of the transceiver system.
Features:
Various types: It has 3 series- LC duplex, SC simplex and MPO.
Fast connection: the unique spiral structure makes connection easy and fast.
High intensity of tension: it’s suitable for ber cables of φ5.0-7.0mm.
Water and dust proof: there’s rubber cushion inside, the stability is good and the grade canbe IP67.
Complete solutions: we have the relatedcomplete outdoor waterproof boxes, adaptersand solutions.
Brief Introduction:
| Cable Fitting Boot | Nylon Color Black |
| Cable Gland Plastic | PEI Color Black |
| Interface Seal | Rubber Color Black |
| Interface Seal | Silicon Color Orange |
| Plug Housing Plastic | PEI Color Black |
| Coupler Ring Plastic | PEI Color Black |
| Shrink Tube | 9.0 x 50mm Color Black |
| Plastic Rod | 3.0 x 40mm Nylon |
| Connector | LC/PC Duplex |

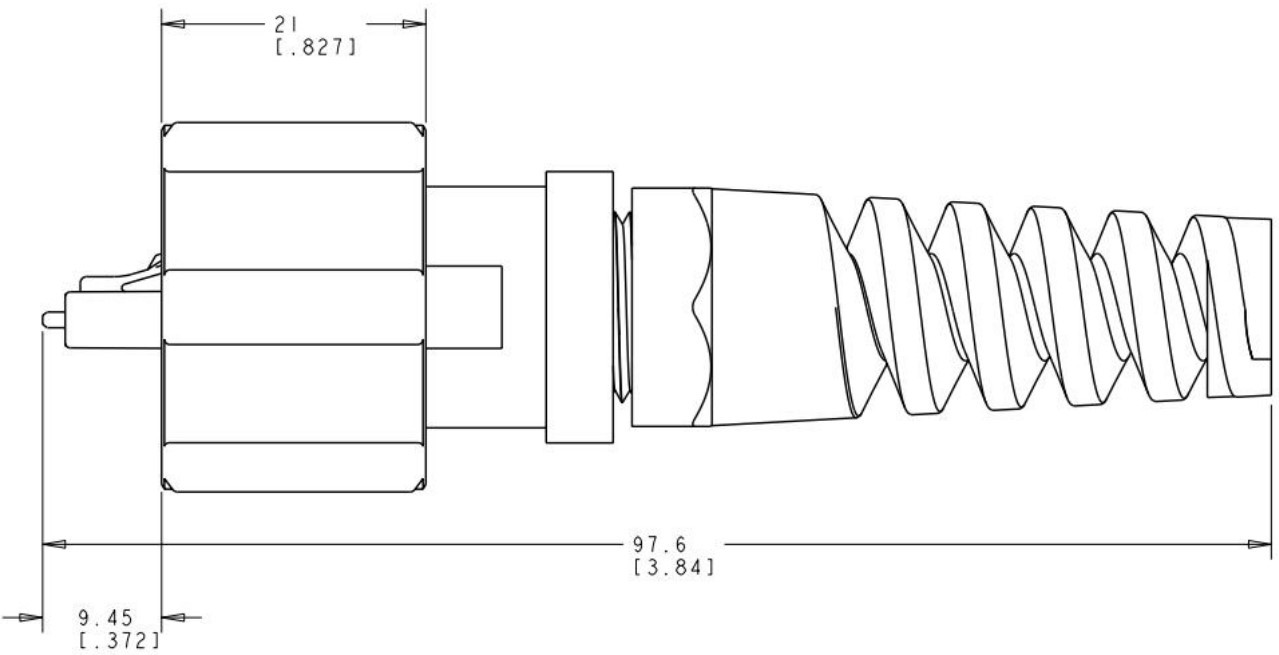

Connector Structure Drawing & Cable Parameters:
Connector Parameter:
| Insertion Loss | SM | ≤0.7dB (Typical≤0.5dB) |
| Polish | MM | ≤0.5dB (Typical≤0.2dB) |
| Return Loss | SM | ≥50dB |
| Mechanical | Plug | ≤1000N(Main Cable) |
| Return Loss | Socket | ≤1000N(Branch Cable) |
| Operation Temp. | ≤0.2dB | |
Enclosure Compatibility :
ODVA Style IP67 Rated Cable Assemblies are compatible with our Wall-mount Enclosure. These cable assemblies can be used with any enclosure up to 0.158" (4mm) thick with a 1.08"-1.25" sized hole.
Fiber-to-the-Antenna (FTTA) installation for mobile communication systems:
Next generation mobile communication systems (3G, Wimax, LTE) using remote radio heads yield considerable savings on operational costs (up to 40%) and reduction of capital expenditure for new network roll-outs and upgrades. FOCC is a global expert for FTTA installations and provides complete solutions ranging from planning, product definition, volume production, logistics to installation services. We directly support OEMs, global and local operators, and installers.
Applications:
