1 U 144 Cores High Density MPO/MPT rack mount enclosure Ten megapixel high-density optical fiber box in data center

Place of Origin Shanghai
Brand Name Yogel
Certification ROSH,ISO9001
Model Number YG-144 High Density MPO/MPT rack mount enclosure
Minimum Order Quantity 1 pieces
Price Negotiate
Packaging Details with standard carton box or can be OEM by customer
Delivery Time 3-5 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 10000 pieces per week
Product Details
Application FTTH FTTB FTTX Network Quality Control 100% Test Before Shipping
Real Factory Yes
Leave a Message
Product Description

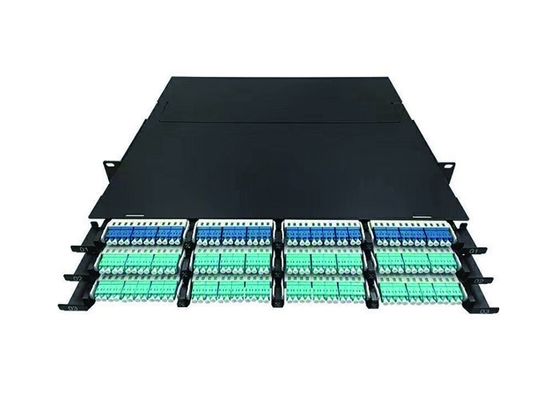

    1 U 144 Cores High Density MPO/MPT rack mount enclosure



Yogel 10 megapixel high-density fiber box for fiber trunk connection and wiring management according to the center MDA,IDA or HAD wiring area, installed in the 19-inch frame and cabinet, can be installed with pre-connected MPO adapter module or FRONT panel of MPO adapter.



Features:



1.Four MPO pre-end boxes can be installed in an MPO 1U high-density fiber box. The maximum number of fiber cores can be managed up to 96 when a double LC adapter is installed in the end box, and 48 when a simplex SC adapter is installed in the end box. For example, the maximum number of fiber cores can be managed up to 288 when an MPO adapter board is installed.



2.The MPO 2U fiber distribution box can be installed with 8 MPO pre-end boxes, the end box can be installed with a dual LC adapter that can manage up to 192 fiber cores, the end box can be installed with a simplex SC adapter that can manage up to 96 fiber cores, for example, the MPO adapter board can be installed with up to 576 fiber cores.



3.The MPO 3U fiber distribution box can be installed with 12 MPO pre-end boxes, the end box can be installed with dual LC adapters to manage up to 288 fiber cores, the end box can be installed with simplex SC adapters to manage up to 144 fiber cores, such as the installation of MPO adapter board can manage up to 864 fiber cores.



4.Ten gigabit high density fiber box is made of high quality cold rolled steel plate.



  • 5.After strict degreasing, pickling, antirust phosphating and pure water cleaning, the board material is sprayed with static electricity. The thickness of the spray is 80um-100um, which conforms to the European ROHS environmental protection standard

  • 6.Ten trillion high-density optical fiber box is more than four times the density of the traditional fused fiber distribution frame, which greatly saves the space of the cabinet, improves the utilization rate of the cabinet, and creates value for the construction of the center

Application:

CATV, metro Test equipment
Telecommunication networks
Local area networks (LAN)
Wide area networks (WAN)
Premise installations



1 U 144 Cores High Density MPO/MPT rack mount enclosure Ten megapixel high-density optical fiber box in data center 0
