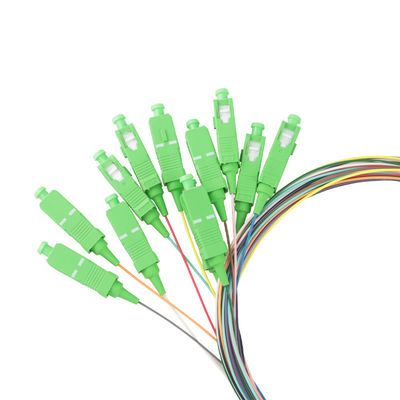

SC/APC-NC, LSZH, 0.9mm, 12 Fiber, G.657A2, 1 meter Color-coded 900μm Pigtail Packs

Place of Origin Shanghai China
Brand Name Yogel or OEM
Certification ISO9000 ,ROHS,CE
Model Number ASC-NC-LJX-012-DA2-0100
Minimum Order Quantity 1
Price Negotiate
Packaging Details 1 piece/inner bag, 100pcs/pack, carton
Delivery Time 3-5 days after despoit
Payment Terms Western Union, MoneyGram, T/T, L/C
Supply Ability 300000 pcs/ month
Product Details
Product Name Color-coded 900μm Pigtail Packs Connector Type SC/APC
Test Wavelength 1310/1550nm Insertion Loss Typ. ≤0.15 DB, Max. ≤0.30 DB
Return Loss ≥60 DB Repeatability ≤0.10 DB
Changeability ≤0.20 DB Durability (1000 Mating) ≤0.20 DB
Connector End SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, E2000/UPC, E2000/APC, MU/UPC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/UPC, SMA/PC, D4/UPC Cable Jacket PVC, OFNR, LSZH, OFNP
Cable Diameter 0.9mm Fiber Count Simplex
Fiber Type Single Mode: G. 652D, G. 655, G. 657A1, G.657A2, G.657B3 (9/125μm) Cable Length 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, Etc. (Customized)
Operation Temperature -40 ~ +80℃ Storage Temperature -40 ~ +85℃
High Light

12 color optical fiber pigtail

,

LC UPC optical fiber pigtail

,

0.9mm lc fiber pigtail

Leave a Message
Product Description

SC Series Cable Assemblies

Color-coded 900μm Pigtail Packs




Product Description


Color-coded 900μm Pigtails Packs are designed for high fiber count splicing applications and are color coded to TIA-598-A industry standards for ease of use. Pigtails are available in Single mode or Multimode, 2, 4, 6, 8 or 12 fiber packs, and your choice of stock connectors (SC, LC, ST, FC). All pigtails feature low insertion loss, and low back reflection and are made with brand fiber. The standard length of 1 meter (Optional).



2 Fiber Buffer Colors – Blue, Orange

4 Fiber Buffer Colors – Blue, Orange, Green, Brown

6 Fiber Buffer Colors – Blue, Orange, Green, Brown, Slate, White

8 Fiber Buffer Colors – Blue, Orange, Green, Brown, Slate, White, Red, Black

12 Fiber Buffer Colors – Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua



*Note: Customized Color-coded Combination is Available.





Features



* Low insertion loss & High return loss

* 900um Tight Buffer Pigtails, 1 Meter Standard Length (Optional)

* Color Coded to Industry Standards

* 2, 4, 6, 8, or 12 Fiber

* Connectors Available: SC, LC, ST, FC

* Fiber Available: SM and MM OM2, OM3, OM4





Applications



* Connector end in optical distribution boxes and termination boxes

* Distribution connect in central office ODF / MDF

* Fiber patch panels within communications closets



Specifications



Item Parameter
Single Mode Multi-Mode
PC UPC APC PC
Test wavelength 1310/1550nm 850/1300nm
Insertion loss Typ. ≤0.15 dB, Max. ≤0.30 dB
Return Loss ≥45 dB ≥50 dB ≥60 dB ≥35dB
Repeatability ≤0.10 dB
Changeability ≤0.20 dB
Durability (1000 Mating) ≤0.20 dB
Operation temperature -40 ~ +80℃
Storage temperature -40 ~ +85℃
Connector End SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, E2000/UPC, E2000/APC, MU/UPC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/UPC, SMA/PC, D4/UPC
Cable jacket PVC, OFNR, LSZH, OFNP
Cable diameter 0.9mm
Fiber count Simplex
Fiber type Single Mode: G. 652D, G. 655, G. 657A1, G.657A2, G.657B3 (9/125μm)
Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125)
Cable length 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc. (Customized)
Fiber brand Corning, Sumitomo, Fujikura, YOFC, TFO
Fire resistant IEC 60794-2-30
Standards Compliant ROHS, IEC, GR-326





Connector End Types - (SC Series)



Type Reference Item Descriptions (Default, Options are available)
SC IEC 61754-4 Single mode simplex APC: Green connectors, Green boots
UPC: Blue connectors, Blue boots
Single mode duplex APC: Green connectors, Green boots
UPC: Blue connectors, Blue boots
Multimode simplex UPC: Grey Connectors, Grey boots
Multimode duplex UPC: Grey Connectors, Grey boots





Dimensional Diagrams - (SC Series)



SC 900μm Simplex Pigtail





SC/APC-NC, LSZH, 0.9mm, 12 Fiber, G.657A2, 1 meter Color-coded 900μm Pigtail Packs 0









Cable Components



SC/APC-NC, LSZH, 0.9mm, 12 Fiber, G.657A2, 1 meter Color-coded 900μm Pigtail Packs 1





Cable length of tolerance



Cable Length of Jumper tolerance requirement
Overall length (L) (m) length of tolerance(cm)
0<L≤20 +10/-0
20<L≤40 +15/-0
L>40 +0.5%xL/-0





End-Face Geometry (3D Interferometer)



Item UPC (Ref: IEC 61755-3-1) APC (Ref: IEC 61755-3-2)
Radius of curvature (mm) 10 to 25 5 to 12
Fiber height (nm) -100 to 100 -100 to 100
Apex offset (μm) 0 to 50 0 to 50
APC angle (°) / 8° ±0.2°
Key error (°) / 0.2° Max.





End-Face Quality



Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 (SM) None None IEC 61300-3-35:2015
0 to 65 (MM) None None
B: Cladding 25 to 115 (SM) None None
65 to 115 (MM) None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None





Mechanical Characteristics



Test Conditions Reference
Endurance 500 mating IEC 61300-2-2
Vibration Frequency: 10 to 55Hz, Amplitude: 0.75mm IEC 61300-2-1
Cable retention 100N (patch cable); 5N (pigtail) IEC 61300-2-4
Strength of coupling mechanism 80N for 2 to 3mm cable IEC 61300-2-6
Cable torsion 15N for 2 to 3mm cable IEC 61300-2-5
Fall 10 drops, 1m drop height IEC 61300-2-12
Static lateral load 1N for 1h (patch cable); 0.2N for 5min (pigtail) IEC 61300-2-42
Cold -25°C, 96h duration IEC 61300-2-17
Dry heat +70°C, 96h duration IEC 61300-2-18
Change of temperature -25°C to +70°C, 12 cycles IEC 61300-2-22
Humidity +40°C at 93%, 96h duration IEC 61300-2-19





Order Information



Connector End A – NC (Non-connector),

Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length

Example:

SC/APC-NC,

LSZH, 0.9mm, 12 Fiber, G.657A2, 1 meter

Color-coded 900μm Pigtail Packs



Samples:



Model No. Description Remarks
ASC-NC-LJX-012-DA2-0100

SC/APC-NC,

LSZH, 0.9mm, 12 Fiber, G.657A2, 1 meter

Color-coded 900μm Pigtail Packs


USC-NC-LJX-012-DA2-0100

SC/UPC-NC,

LSZH, 0.9mm, 12 Fiber, G.657A2, 1 meter

Color-coded 900μm Pigtail Packs
