FC APC G.657A2 Simplex Pigtail Fiber Optic Patch Cords

  • FC APC G.657A2 Simplex Pigtail Fiber Optic Patch Cords
  • FC APC G.657A2 Simplex Pigtail Fiber Optic Patch Cords
Place of Origin China
Brand Name Yogel
Certification ROHS
Model Number FC APC Pigtail
Minimum Order Quantity 1Piece
Price Negotiate
Packaging Details 1 piece/plastic bag, 100pcs/inner box
Delivery Time 3-7 work days after despoit
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs /Month
Product Details
Connector FC Polish APC
Fiber Count Simplex Jacket Color Yellow
Cable Jacket PVC/LSZH Real Factory Yes
High Light

Simplex Pigtail Fiber Optic Patch Cords

,

G.657A2 Fiber Optic Patch Cords

,

G.657A2 optical patch cord
Leave a Message
Product Description

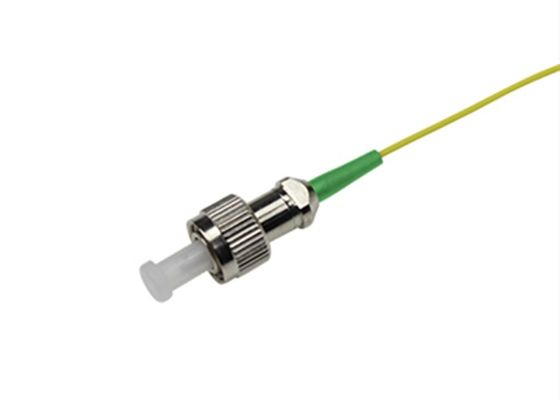

FC APC G.657A2 0.9mm Simplex Pigtail Fiber Optical Patch Cord



Description:



Simplex cable assemblies are offered with a variety of combinations. Connectors include SC, FC, ST and LC. 3.0 mm, 2.0 mm, 1.6 mm, 1.2mm and 900μm simplex cables in PVC, OFNR, LSZH, OFNP jackets and G.652D, G. 657A2 fiber types are available.



Features:

  • Low insertion loss & High return loss
  • Connectors compliant with Telcordia GR-326
  • Cable compliant with Telcordia GR-409
  • Mechanical performance compliant with IEC 61754-4
  • RoHS compliant - Riser, Plenum, and LSZH rated cables available



Applications:



Building interconnections (campus LAN)

Connector end in optical distribution boxes and termination boxes

Trunk lines direct to telecommunications closet

Cross-connect in outdoor closet

Distribution connect in central office ODF / MDF

Fiber patch panels within communications closets

Links between Internet electronic equipment (SFP module, Switch, OLT, ONU etc.), Cable TV optical equipment (Transmitter, EDFA, Node, etc.) and fiber patch panels





Specifications:



Item Parameter
Single Mode Multi-Mode
PC UPC APC PC
Test wavelength 1310/1550nm 850/1300nm
Insertion loss Typ. ≤0.15 dB, Max. ≤0.30 dB
Return Loss ≥45 dB ≥50 dB ≥60 dB ≥35dB
Repeatability ≤0.10 dB
Changeability ≤0.20 dB
Durability (1000 Mating) ≤0.20 dB
Operation temperature -40 ~ +80℃
Storage temperature -40 ~ +85℃
Connector end SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cable jacket PVC, OFNR, LSZH, OFNP
Cable diameter 3.0mm, 2.0mm, 1.6mm, 1.2mm, 0.9mm
Fiber count Simplex
Fiber type

Single Mode: G. 652D, G. 655, G. 657A2, etc.

Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125)
Cable length 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc.
Fiber brand Corning, Sumitomo, Fujikura, YOFC, TFO
Fire resistant IEC 60794-2-30
Standards Compliant ROHS, IEC, GR-326



Dimensional Diagrams (SC Series)

  • SC 900μm Simplex Pigtail

FC APC G.657A2 Simplex Pigtail Fiber Optic Patch Cords 0

  • SC 1.2mm, 1.6mm, 2.0mm & 3.0mm Simplex Pigtail

FC APC G.657A2 Simplex Pigtail Fiber Optic Patch Cords 1

  • SC 1.2mm, 1.6mm, 2.0mm & 3.0mm Simplex Patch Cord

FC APC G.657A2 Simplex Pigtail Fiber Optic Patch Cords 2



Order information:



Connector End A - Connector End B,

Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length



Example:

SC/UPC-SC/APC,

LSZH, 3.0mm, Simplex, G.657A2, 5 meters

Indoor patch cord





*Connector End A           *Connector End B       *Jacket Cable     *Cable Diameter     *Fiber Count

ASC = Aangle SC                          ASC = Aangle SC                      V = PVC                          S = 3.0 mm                    001 = 1

AFC = Aangle FC                           AFC = Aangle FC                       L = LSZH                        T = 2.0 mm                    002 = 2

ALC = Aangle LC                           ALC = Aangle LC                       R = OFNR                      M = 1.6 mm

USC = Ultra SC                             USC = Ultra SC                          P = OFNP                       J = 0.9mm

UFC = Ultra FC                              UFC = Ultra FC                           E = PE

UST = Ultra ST                               UST = Ultra ST                           U = TPU

ULC = Ultra LC                              ULC = Ultra LC

                                                          XXX = NC

*Fiber Type                       *Multimode                   *Cable Length

S1= OS1                                          PSC = SC MM                            0050=0.5M
0050 = 0.5M                                    PFC = FC MM
S2= G.652D                                    PLC = LC MM
S3= G.657A1                                  PST = SC MM
S4= G.657A2
M1= OM1
M2 = OM2
M3 = OM3
M4 = OM4
M5 = OM5


FAQ :

1.Do you provide free samples?

yes, we can supply some free samples , the buyer should pay the shipping cost.

2.Can you supply OEM products under our brand?

yes ,we are manufacturer ,but we can accept OEM service with OEM package ,you just need to send us your detailed requirements.

3, How to proceed an order?
A: First let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.
Thirdly customers confirm the samples and places deposit for formal order.

Fourthly we arrange the production.
