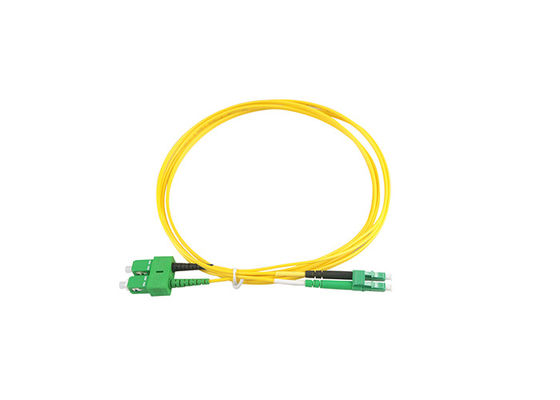

LC APC To SC APC G.657A2 Duplex Fiber Optic Patch Cords
| Place of Origin | Shanghai China |
|---|---|
| Brand Name | Yogel |
| Certification | ISO9000 ,ROHS |
| Model Number | LC APC to SC APC 2.0 3.0mm |
| Minimum Order Quantity | 10 |
| Price | Negotiate |
| Packaging Details | 1 piece/inner bag, 100pcs/pack or OEM |
| Delivery Time | 3-5 days after despoit |
| Payment Terms | Western Union, MoneyGram, T/T, L/C |
| Supply Ability | 10000 pcs/ month |
Product Details
| Product Name | LC APC To SC APC 2.0 3.0mm G. 657A2 Duplex Connector Patchcord Fiber Optical Cable | Insertion Loss | ≤0.20dB |
|---|---|---|---|
| Return Loss | ≥55 DB | Jacket | PVC And LSZH |
| Length | 1 .5.10 Meter | Fiber Diameter | 2.0 3.0mm |
| High Light | LC APC to SC APC duplex fiber patch cords,G.657A2 duplex fiber patch cords,G.657A2 lc to sc fiber patch cord |
||
Product Description
LC APC to SC APC 2.0 3.0mm G. 657A2 Duplex Connector patchcord fiber optical cable
Features:
. High quality zirconium dioxide ceramic ferrule.
. Mature production technology and facility, stable interchangeability and repeatability.
. The length, outer diameter, ferrule end face and adapter customizable.
. Low insertion loss, high return loss
. High dense connection, easy to use
. High credibility and stability
. 100% test before ship
Application:
1. Optical access network
2. Data processing net works
3. Fiber optic communication networks
4. Telecommunication networks
5. CATV, LAN, WAN, test & measurement
Specifications:
| Item | Parameter | |||
| Single Mode | Multi-Mode | |||
| PC | UPC | APC | PC | |
| Test wavelength | 1310/1550nm | 850/1300nm | ||
| Insertion loss | Typ. ≤0.15 dB, Max. ≤0.30 dB | |||
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | ≥35dB |
| Repeatability | ≤0.10 dB | |||
| Changeability | ≤0.20 dB | |||
| Durability (1000 Mating) | ≤0.20 dB | |||
| Connector end | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC | |||
| Cable jacket | PVC, OFNR, LSZH, OFNP | |||
| Cable diameter | 3.0mm, 2.0mm, 1.6mm, 1.2mm, 0.9mm | |||
| Fiber type |
Single Mode: G. 652D, G. 655, G. 657A2, etc. Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125) |
|||
| Cable length | 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc. | |||
| Fiber brand | Corning, Sumitomo, Fujikura, YOFC, TFO | |||
| Fire resistant | IEC 60794-2-30 | |||
Order Confirmation:
Connector End A - Connector End B,
Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length
