E2000 Connector Fiber optic patch cord pigtails 2.0/3.0 Connector 1M 2M 3M 5M

Place of Origin Shanghai
Brand Name YOGEL
Certification ISO9001
Model Number sc fiber optic patch cord
Minimum Order Quantity 1
Packaging Details Standard box +Carton
Payment Terms L/C, T/T, Western Union
Supply Ability 50000pcs/Month
Product Details
Fiber Type Simplex And Duplex, G652D, G655, SM Or MM Application Telecommunication Equipments
Connector Type E2000 Length 5m/customized
Insertion Loss ≤0.3dB Product Name Fiber Optic Patch Cord
Material PVC/LSZH Color Yellow, Orange Or Others, Aqua Or Cusomized
Item Optical Fiber Patch Cord, Polish APC, UPC, PC, PC/UPC/APC
Wavelength 850 Nm, 1310nm, 1310nm Or 1550nm
Leave a Message
Product Description

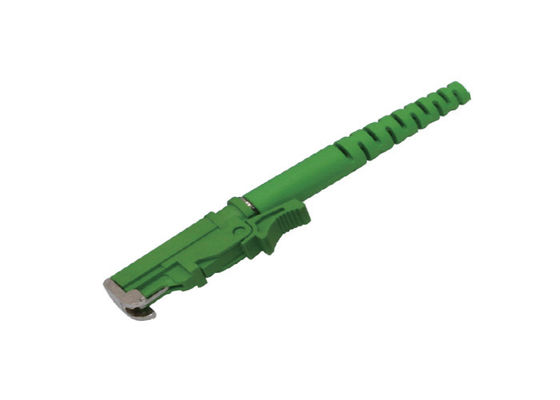

E2000 Connector Fiber optic patch cord pigtails 2.0/3.0 Connector 1M 2M 3M 5M 0



Simplex cable assemblies are offered with a variety of combinations. Connectors include SC, FC, ST and


LC. 3.0 mm, 2.0 mm, 1.6 mm, 1.2mm and 900μm simplex cables in PVC, OFNR, LSZH, OFNP jackets


and G.652D, G. 657A2 fiber types are available.



*Low insertion loss & High return loss


*Connectors compliant with Telcordia GR-326


*Cable compliant with Telcordia GR-409


*Mechanical performance compliant with IEC 61754-4


*RoHS compliant - Riser, Plenum, and LSZH rated cables available



*Building interconnections (campus LAN)


*Connector end in optical distribution boxes and termination boxes


*Trunk lines direct to telecommunications closet


*Cross-connect in outdoor closet


*Distribution connect in central office ODF / MDF


*Fiber patch panels within communications closets


*Links between Internet electronic equipment (SFP module, Switch, OLT, ONU etc.), Cable TV optical


 equipment (Transmitter, EDFA, Node, etc.) and fiber patch panels




Item Parameter
Single Mode Multi-Mode
Test wavelength 1310/1550nm 850/1300nm
Insertion loss Typ. ≤0.15 dB, Max. ≤0.30 dB
Return Loss ≥45 dB ≥50 dB ≥60 dB ≥35dB
Repeatability ≤0.10 dB
Changeability ≤0.20 dB
Durability (1000 Mating) ≤0.20 dB
Operation temperature -40 ~ +80℃
Storage temperature -40 ~ +85℃
Connector end SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cable jacket PVC, OFNR, LSZH, OFNP
Cable diameter 3.0mm, 2.0mm, 1.6mm, 1.2mm, 0.9mm
Fiber count Simplex
Fiber type

Single Mode: G. 652D, G. 655, G. 657A2, etc.

Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125)

Cable length 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc.
Fiber brand Corning, Sumitomo, Fujikura, YOFC, TFO
Fire resistant IEC 60794-2-30
Standards Compliant ROHS, IEC, GR-326


Order Information


Connector End A - Connector End B,


Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length




LSZH, 3.0mm, Simplex, G.657A2, 5 meters

Indoor patch cord
