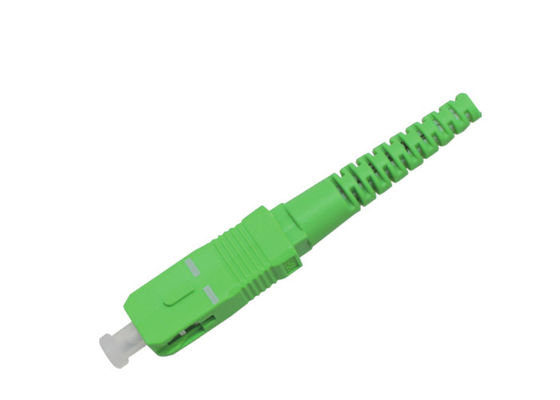

FTTH SC/APC 3.0mm SX SM Fiber Optic Connector Flat Drop Cable Patch Cord
Product Details
| Insertion Loss | ≤0.2 (Typical Value) ≤0.3 (Max Value) | Return Loss | ≥60dB |
|---|---|---|---|
| Working Temperature (℃) | -40~+85 | Repeatability | ≤0.1dB |
| Real Factory | Yes | Type | SC APC |
Product Description
FTTH SC/APC 3.0mm SX SM Fiber Optic Connector Flat Drop Cable Patch Cord
Description:
An optical fiber connector is a flexible device that connects fiber cables requiring a quick connection and disconnection, keeping the ends of the fiber properly aligned, let the fiber receiver can get the maximum light from the launching fiber, and minimize the energy loss for the system because of the intervention of the optic link, this is the basic requirement for the fiber optic connector. To some extent, the fiber optic connectors have some effect on the stability and performance of the fiber-optical transmission system.
Optional: Plastic Retainer / Alloy Retainer /Brass Retainer (ROHS reached)
Fetures Of Connector:
Models meet Telcordia test specification GR-326-CORE are available
Models satisfy Vertical Burning Test for Classifying Materials UL94V-0 are available
Available precision crimping tool
Specifications:
| Connector Kit | Return Loss (dB) | Insertion Loss (dB) | Repeatability Loss (dB) | Repeat Plug-pull Times | Working Temperature (℃) |
| PC (SM) | ≥50 |
≤0.2 (Typical value) ≤0.3 (Max value) |
≤0.1 | ≥1000 | -40~+85 |
| UPC (SM) | ≥55 | ||||
| APC (SM) | ≥60 |
Features:
Low insertion loss and back reflection loss
Ferrule end surface predomed
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing
Boots in a variety of colors
Telcordia style boots
Free-floating ceramic ferrule
Order information:
Connector End A - Connector End B,
Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length
*Connector End A *Connector End B *Jacket Cable *Cable Diameter *Fiber Count
ASC = Aangle SC ASC = Aangle SC V = PVC S = 3.0 mm 001 = 1
AFC = Aangle FC AFC = Aangle FC L = LSZH T = 2.0 mm 002 = 2
ALC = Aangle LC ALC = Aangle LC R = OFNR M = 1.6 mm
USC = Ultra SC USC = Ultra SC P = OFNP J = 0.9mm
UFC = Ultra FC UFC = Ultra FC E = PE
UST = Ultra ST UST = Ultra ST U = TPU
ULC = Ultra LC ULC = Ultra LC
XXX = NC
*Fiber Type *Multimode *Cable Length
S1= OS1 PSC = SC MM 0050=0.5M
0050 = 0.5M PFC = FC MM
S2= G.652D PLC = LC MM
S3= G.657A1 PST = SC MM
S4= G.657A2
M1= OM1
M2 = OM2
M3 = OM3
M4 = OM4
M5 = OM5
FAQ :
1.Do you provide free samples?
yes, we can supply some free samples , the buyer should pay the shipping cost.
2. Can we become your distributor or agency in our area?
yes, it is possible if we do not have an agency or distributor in your area. The best way to start the business and approve your good intentions through several regular orders over a period. we will support very good products to our distributor including samples, price and other supports. please contact with our sales manager for more details.
3.Can you supply OEM products under our brand?
yes ,we are manufacturer ,but we can accept OEM service with OEM package ,you just need to send us your detailed requirements.
4, Can you supply OEM products under our band?
A: Yes, we can. But we can accept OEM service with be finished with OEM package, you just need to send your detailed requirements.
5, How to proceed an order?
A: First let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly customers confirm the samples and places deposit for formal order.
Fourthly we arrange the production.
