LC/UPC 1.2mm Single Mode Simplex Fiber Optic Connector Fiber Optic Patch Cord

Place of Origin China
Brand Name Yogel
Model Number LC 1.2mm SX
Minimum Order Quantity 1Piece
Price Negotiate
Packaging Details 1 piece/plastic bag, 100pcs/inner box
Delivery Time 3-7 work days after despoit
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs /Month
Product Details
Fiber Type SM Or MM Application FTTH FTTB FTTX Network
Insertion Loss ≤0.3dB Connector LC
Return Loss >55dB Fiber Count Simplex Or Duplex
Quality Control 100% Test Before Shipping Real Factory Yes
Leave a Message
Product Description

LC/UPC 1.2mm Single Mode Simplex Fiber Optic Connector Fiber Optic Patch Cord




The LC jumper connector provides a secure locking mechanism to ensure connection reliability. Each cable is tested for optical integrity and loss prior to packaging to ensure proper data transmission. The durable rubber boots protects against damage typical in busy data racks and each end is properly labelled for easy identification.

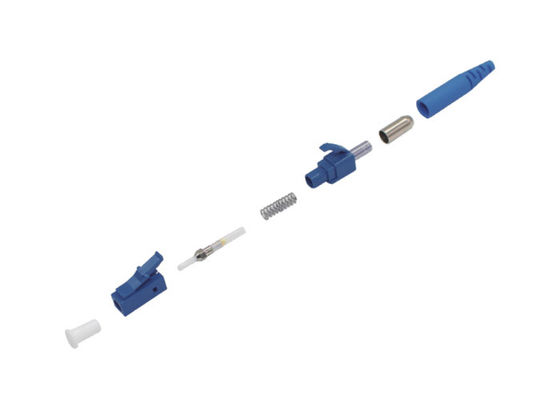

LC/UPC 1.2mm Single Mode Simplex Fiber Optic Connector Fiber Optic Patch Cord 0





Item Parameter
Single Mode Multi-Mode
Test wavelength 1310/1550nm 850/1300nm
Insertion loss Typ. ≤0.15 dB, Max. ≤0.30 dB
Return Loss ≥45 dB ≥50 dB ≥60 dB ≥35dB
Repeatability ≤0.10 dB
Changeability ≤0.20 dB
Durability (1000 Mating) ≤0.20 dB
Operation temperature -40 ~ +80℃
Storage temperature -40 ~ +85℃
Connector end SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cable jacket PVC, OFNR, LSZH, OFNP
Cable diameter 3.0mm, 2.0mm, 1.6mm, 1.2mm, 0.9mm
Fiber count Simplex
Fiber type

Single Mode: G. 652D, G. 655, G. 657A2, etc.

Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125)

Cable length 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc.
Fiber brand Corning, Sumitomo, Fujikura, YOFC, TFO
Fire resistant IEC 60794-2-30
Standards Compliant ROHS, IEC, GR-326




*Low insertion loss & High return loss


*Connectors compliant with Telcordia GR-326


*Cable compliant with Telcordia GR-409


*Mechanical performance compliant with IEC 61754-4


*RoHS compliant - Riser, Plenum, and LSZH rated cables available




1. Optic communication system


3. LAN

4. CATV, EDFA equipment

5. Test instrument

6. Fiber optic sensor



Order information:


Connector End A - Connector End B,

Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length


LC/UPC 1.2mm Single Mode Simplex Fiber Optic Connector Fiber Optic Patch Cord 1



*Connector End A           *Connector End B       *Jacket Cable     *Cable Diameter     *Fiber Count

ASC = Aangle SC                          ASC = Aangle SC                      V = PVC                          S = 3.0 mm                    001 = 1

AFC = Aangle FC                           AFC = Aangle FC                       L = LSZH                        T = 2.0 mm                    002 = 2

ALC = Aangle LC                           ALC = Aangle LC                       R = OFNR                      M = 1.6 mm

USC = Ultra SC                             USC = Ultra SC                          P = OFNP                       J = 0.9mm

UFC = Ultra FC                              UFC = Ultra FC                           E = PE

UST = Ultra ST                               UST = Ultra ST                           U = TPU

ULC = Ultra LC                              ULC = Ultra LC

                                                          XXX = NC

*Fiber Type                       *Multimode                   *Cable Length
S1= OS1                                          PSC = SC MM                            0050=0.5M
0050 = 0.5M                                    PFC = FC MM
S2= G.652D                                    PLC = LC MM
S3= G.657A1                                  PST = SC MM
S4= G.657A2
M1= OM1
M2 = OM2
M3 = OM3
M4 = OM4
M5 = OM5
