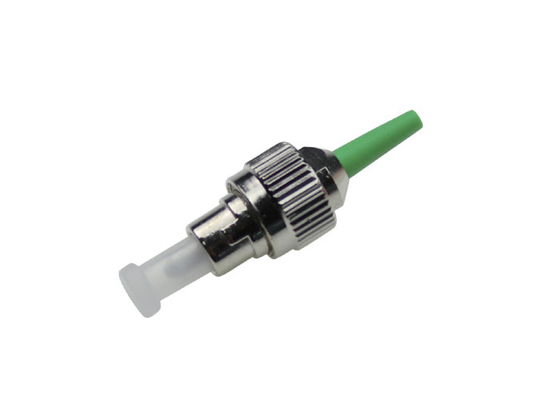

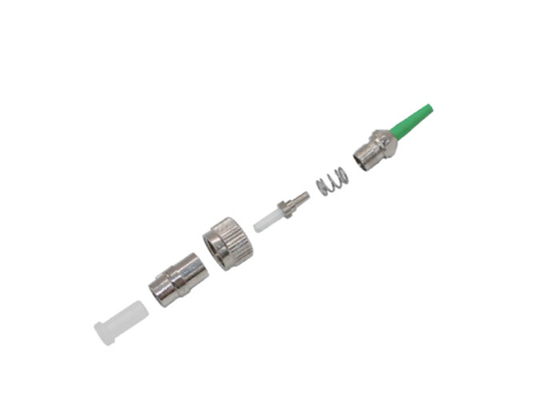

FC 0.9mm 2.0mm 3.0mm SX Connector fiber optic patch cable jumper fiber patch cord

Place of Origin Shanghai
Brand Name Yogel
Certification ISO9000
Model Number FC 0.9mm cable
Minimum Order Quantity 1
Price Negotiate
Packaging Details 1 piece/inner bag, 100pcs/pack
Delivery Time 3-5 days after despoit
Payment Terms Western Union, MoneyGram, T/T, L/C
Supply Ability 20000 pcs/ month
Product Details
Product Name FC 0.9mm 2.0mm 3.0mm SX Connector Fiber Optic Patch Cable Jumper Fiber Patch Cord Wavelength 1310/1550nm
Insertion Loss Typ. ≤0.15 DB, Max. ≤0.30 DB Return Loss ≥50 DB
Jacket Cable LSZH,PVC Fiber Type Simplex And Duplex, G652D, G655, Anything, SM Or MM
Connector Type PC/UPC/APC, SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO, ST SC LC FC, SC/Apc & SC/Upc, SC-SC LC-LC FC-FC ST-ST Or Hybrid Fiber Count 1 Or 2
Leave a Message
Product Description

FC 0.9mm 2.0mm 3.0mm SX Connector fiber optic patch cable jumper fiber patch cord





Simplex cable assemblies are offered with a variety of combinations. Connectors include SC, FC, ST and LC. 3.0 mm, 2.0 mm, 1.6 mm, 1.2mm and 900μm simplex cables in PVC, OFNR, LSZH, OFNP jackets and G.652D, G. 657A2 fiber types are available.





*Low insertion loss


*High return loss


*Connectors compliant with Telcordia GR-326


*Cable compliant with Telcordia GR-409


*RoHS compliant - Riser, Plenum, and LSZH rated cables available




1. Optic communication system


3. LAN

4. CATV, EDFA equipment

5. Test instrument

6. Fiber optic sensor




Item Parameter
Single Mode Multi-Mode
Test wavelength 1310/1550nm 850/1300nm
Insertion loss Typ. ≤0.15 dB, Max. ≤0.30 dB
Return Loss ≥45 dB ≥50 dB ≥60 dB ≥35dB
Repeatability ≤0.10 dB
Changeability ≤0.20 dB
Durability (1000 Mating) ≤0.20 dB
Connector end SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cable jacket PVC, OFNR, LSZH, OFNP
Cable diameter 3.0mm, 2.0mm, 1.6mm, 1.2mm, 0.9mm
Fiber count Simplex
Fiber type

Single Mode: G. 652D, G. 655, G. 657A2, etc.

Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125)

Cable length 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc.
Fiber brand Corning, Sumitomo, Fujikura, YOFC, TFO
Standards Compliant ROHS, IEC, GR-326


Order information:

FC 0.9mm 2.0mm 3.0mm SX Connector fiber optic patch cable jumper fiber patch cord 0


*Connector End A       *Connector End B          *Jacket Cable       *Cable Diameter     *Fiber Count

ASC = Aangle SC                ASC = Aangle SC                     V = PVC                      S = 3.0 mm                      001 = 1

AFC = Aangle FC                AFC = Aangle FC                      L = LSZH                     T = 2.0 mm                     002 = 2

ALC = Aangle LC                 ALC = Aangle LC                      R = OFNR                   M = 1.6 mm

USC = Ultra SC                   USC = Ultra SC                         P = OFNP                    J = 0.9mm

UFC = Ultra FC                   UFC = Ultra FC                          E = PE

UST = Ultra ST                   UST = Ultra ST                           U = TPU

ULC = Ultra LC                   ULC = Ultra LC

                                           XXX = NC

*Fiber Type                  *Multimode          *Cable Length
S1= OS1                             PSC = SC MM            0050=0.5M
0050 = 0.5M                       PFC = FC MM
S2= G.652D                       PLC = LC MM
S3= G.657A1                     PST = SC MM
S4= G.657A2
M1= OM1
M2 = OM2
M3 = OM3
M4 = OM4
M5 = OM5
