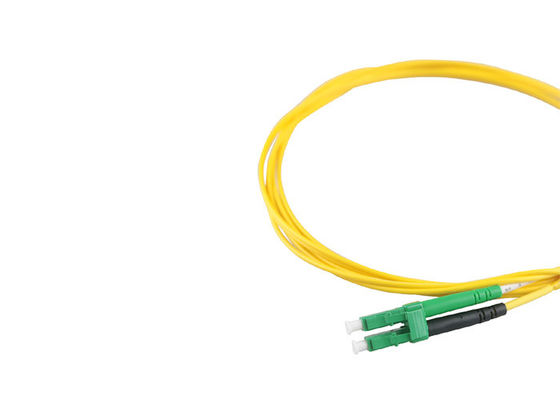

LC Duplex 2.0mm SM 5m Fiber Optic Patch Cord Fiber Optic Jumper Patch Cords
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Yogel |
| Certification | ISO9001 |
| Model Number | LC Duplex Fiber Optic Patch Cord |
| Minimum Order Quantity | 1 Pieces |
| Price | Negotiate |
| Packaging Details | soft packing in side, with inside protecting foam,1/ plastic bag, 1/ carton box. |
| Delivery Time | 3-5 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10000 pieces per week |
Product Details
| Material | LZSH/PE | Color | Yellow |
|---|---|---|---|
| Quality Control | 100% Test Before Shipping | ||
| High Light | SM 5m Fiber Optic Patch Cord,2.0mm Fiber Optic Patch Cord,2.0mm fiber optic jumper cables |
||
Product Description
LC Duplex 2.0mm SM 1m 3m 5m Fiber Optic Patch Cord Fiber Optical Jumpern Fiber Optical Cable
A fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".
Application field
1.Optical fiber communication systems engineering
2.Fiber optic data communication network
3.Fiber CATV engineering
4.Other optical technology tests
Features
1.The style is diverse, the interface is complete
2.Low insertion loss and added loss
3.Height of attenuation
4.High back loss, small volume, light weight
5.High stability, high reliability
Specification
| Applicable connector type. | LC/UPC |
| Optical fiber type | SM |
| Test the wavelength | 1310nm~1550nm |
| Insertion loss | Typical value≤0.15,maximum≤0.30 |
| Return Loss | ≥50dB |
| Insert core diameter | ∮1.25mm |
| Insert core parameter | Aperture::125.5+1/-0μm,Concentricity:≤1.0μm |
| Durability | 1000 times plug |
| Suitable for optical cable diameter | ∮2.0mm,∮3.0mm, |
| Working temperature | -20℃ to +70℃ |
| Storage temperature | -40℃ to + 85℃ |
Ordering Information
| Connector | Material | Length | Fiber Type |
| SC | LSZH | 1M | S1 |
| FC | PE | 3M | S2 |
| LC | OFNR | 5M | S3 |
| ST | S4 |
Connector End A - Connector End B,
Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length
*Connector End A *Connector End B *Jacket Cable *Cable Diameter *Fiber Count
ASC = Aangle SC ASC = Aangle SC V = PVC S = 3.0 mm 001 = 1
AFC = Aangle FC AFC = Aangle FC L = LSZH T = 2.0 mm 002 = 2
ALC = Aangle LC ALC = Aangle LC R = OFNR M = 1.6 mm
USC = Ultra SC USC = Ultra SC P = OFNP J = 0.9mm
UFC = Ultra FC UFC = Ultra FC E = PE
UST = Ultra ST UST = Ultra ST U = TPU
ULC = Ultra LC ULC = Ultra LC
XXX = NC
*Fiber Type *Multimode *Cable Length
S1= OS1 PSC = SC MM 0050=0.5M
0050 = 0.5M PFC = FC MM
S2= G.652D PLC = LC MM
S3= G.657A1 PST = SC MM
S4= G.657A2
M1= OM1
M2 = OM2
M3 = OM3
M4 = OM4
M5 = OM5
FAQ
1. Are you manufacturer?
Yes!
2. How about the quality?
Our company's products are through the quality of the test, the indicators have reached the international standard.
3. Which currencies are supported?
Dollar, euro, RMB
4.What are the after-sales service?
In the face of service and quality problems,can be settled through friendly consultations,
as far as possible in accordance with customer needs, meet customer needs, meet product quality problems, we can free replacement of new products!
5. How does your factory do the quality control ?
Every product will be fully assembled and carefully tested before packing and shipping.
