Fusion Spliced Sc Upc 1490nm Fiber Optic Fast Connectors

Place of Origin Shanghai
Brand Name Yogel
Certification ISO9000
Model Number FSOC3101-2-ASC
Minimum Order Quantity 1
Price Negotiate
Packaging Details 10 pieces /carton box
Delivery Time 3-5 days after despoit
Payment Terms Western Union, MoneyGram, T/T, L/C
Supply Ability 5000 pcs/ month
Product Details
Product Name Fusion-spliced Sc Upc Fiber Optic Quick Fast Connector Length 55mm
Insertion Loss <0.3db Return Loss > 55db
Cable 2.0, 2.4, 3.0mm, 3.1x2.0mm Or 2.0x1.6mm Flat Drop Cable Wavelength 1310nm, 1490nm, 1550nm
High Light

1490nm Fiber Optic Fast Connectors


Fusion spliced Fiber Optic Fast Connectors


1490nm sc upc fast connector

Leave a Message
Product Description

Fusion-spliced sc upc fiber optic quick fast connector

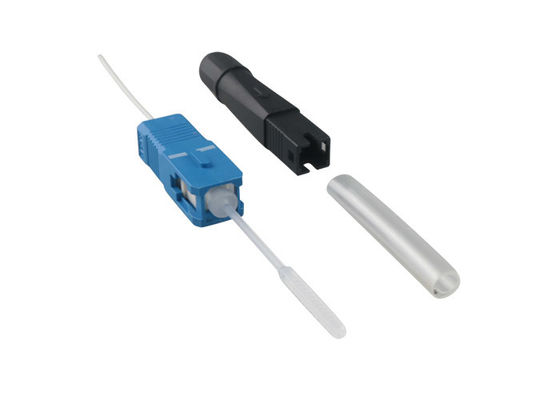

These fusion-spliced, field installable connectors are factory-terminated, pre-polished and composed of four parts, can be easily assembled after splicing with one-touch, push-pull system. The factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the field, which minimizes the potential for operator error and expensive connector scrap.


Fusion splice-on connector utilizes a fusion splicer to terminate the connector in the field, addressing return loss concerns present in analog optical networks. This advanced process yields true APC performance for SC/APC and FC/APC configurations.

This type splice-on connector is compatible with a variety of fusion splicers which have a set of required universal holder and heat oven.




- Easy and Quick assembly (within 2minutes) without special tools
- No need electric power, polishing, epoxy or adhesive on site
- Reliable assembly with assembly guide.
- Available splice inspection with visible light source or optical power meter on site
- Available to re-assembly process after Termination more than 5 times

- Success rate:>98% (for the first time)

- Low Insertion Loss & High Return Loss




Fiber Termination in:

-RF-overlay FTTP networks

-Cable TV backbone networks

-Outside plant

-FTTH, FTTX solutions

-MDU FTTP Cabling

Central office connector replacement




ITEM Single Mode Multi-Mode
Connector Type SC, FC
Polishing UPC APC UPC
Fiber SM 9/125 OM1, OM2, OM3, OM4
Insertion Loss ≤Avg. 0.2dB (≤Max. 0.3dB)
Return Loss ≥50dB ≥60dB ≥35dB
Cable 2.0, 2.4, 3.0mm, 3.1x2.0mm or 2.0x1.6mm Flat Drop Cable
Tensile Strength ≥60N(6.1KG)
Mating Durability 500 Cycle, ≤0.2dB
Temperature Range -40℃~+75℃


Assembly Flow:






1.Fiber processing                2. Fiber splicing                  3. Protection sleeve         4. Assembled connector shrinking




Fusion Spliced Sc Upc 1490nm Fiber Optic Fast Connectors 0


Fusion Spliced Sc Upc 1490nm Fiber Optic Fast Connectors 1

Overall Length(L): 55 mm
