FTTB 1310nm 28/26dB 10m OTDR Fiber Tester

Place of Origin SHANGHAI
Brand Name YOGEL
Certification ISO9001
Model Number OTDR2000
Minimum Order Quantity 1
Price 456USD/PCS
Packaging Details standard box+ Carton
Delivery Time 3-7days
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 1000PCS/Mpnth
Product Details
Product Name OTDR Dynamic Range 28/26dB
Wavelength 1310nm/1550nm±20nm, Test Distance ≥5 Km
Weight 0.9KG Dimension 208mm × 110mm × 56mm
Color Yellow Attenuation Dead Zone 10m
Event Dead Zone 1.5m Application FTTH FTTB FTTX Network
Language English Optical Interface FC/UPC (Interchangeable SC, ST)
High Light

10m OTDR Fiber Tester


FTTB OTDR Fiber Tester


FTTB fiber otdr testing equipment

Leave a Message
Product Description

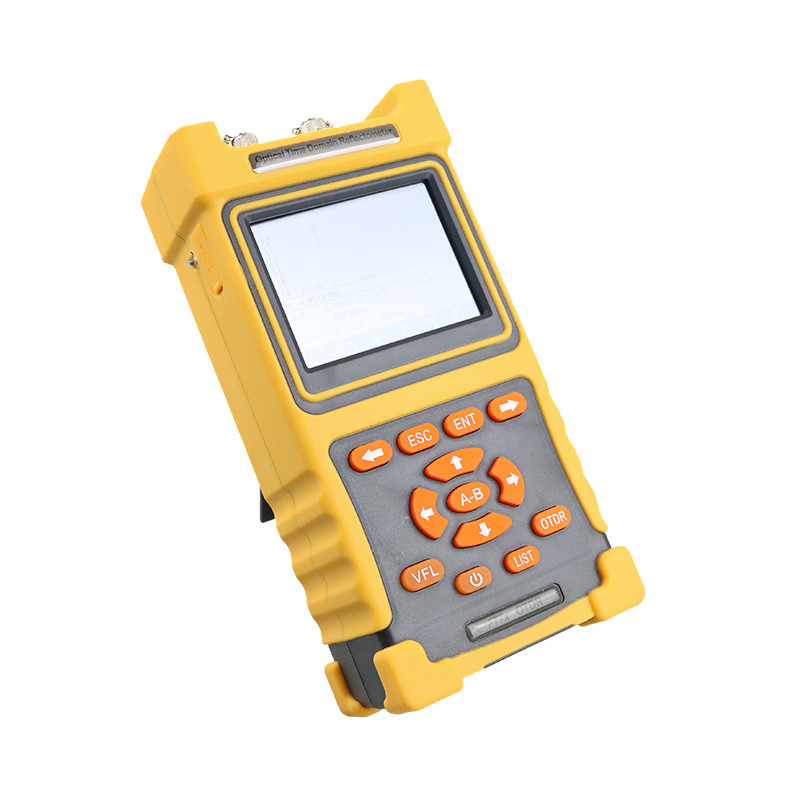

OTDR2000 Optical Time Domain Reflectometer Single Mode 1310nm/1550nm 28/26dB dynamic range




OTDR2000 is the new generation of intelligent OTDR. This product is mainly used to measure the


parameters of optical fibers and cables, such as length, loss, and connection quality, etc.; It can


realize the accurate positioning of event points and fault points, and can be widely used in the


construction, maintenance testing and emergency repair of the optical fiber communication systems


as well as the research, production and production measurement of optical fibers and cables and so


on. This product can provide you with the highest performance of solutions for installation and


construction of fiber optic network construction and the subsequent fast and efficient maintenance


and troubleshooting testing.




*Novel appearance, durable


*Simplest interface and intuitive operation


*Unique dual operation mode of key plus touch screen


*One-key analysis


*High capacity of lithium battery (more than 10 hours continuous working time)



Model No. OTDR2000
Type of optical fiber Single Mode
Center wavelength 1310nm/1550nm ± 20nm
Maximum dynamic range (dB) 1 28/26
Event blind zone 2 1.5m
Attenuation blind zone 10m
Display type 3.5inch, color LCD, touch screen operation
Optical interface FC/UPC (Interchangeable SC, ST)
Test range (dB) 500m,1km,2km,4km,8km,16km,32km,64km,100km
Pulse width 10,30,50,100,275,500,1000,5000,10000ns
Range accuracy ± (1m + sampling interval +0.005% × distance)
Attenuation measurement accuracy ±0.05 dB
Reflection measurement accuracy ±4dB
Data storage ≥ 2000 test curves
Communication interface USB
Output power ≥2mW
Test distance ≥5 km
Environmental adaptability
Power supply mode

AC / DC adapter: AC: 100V ~ 240V (1.5A), 50/60Hz DC: 18V to 20V (2A)

Internal lithium-ion battery pack: 7.4V, 5200mAh

Battery operation time 3 ≥ 10hours
Operating temperature -5℃~+50℃
Storage temperature -20℃~+70℃
Relative humidity 0~95%, no condensation
Weight 0.90KG
Volume 208mm × 110mm × 56mm




*1.Ambient temperature +23℃±2℃, maximum test pulse width and the average number of times more than 500;


*Test condition of blind zone (range 500m, pulse width 10ns and channel III), reflection loss of fiber end face ≥45dB, typical value;


*3.Low brightness, not tested.

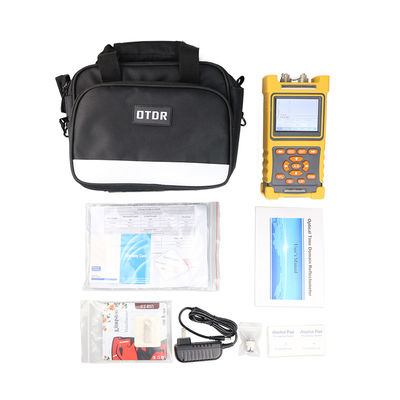

Standard Configuration


No. Item Quantity
1 OTDR 1 pc
2 OTDR SC Interchangeable interface 1 pc
3 Power Adapter 1 pc
4 USB Flash Disk (Including Analysis Software) 1 pc
5 Touch Stylus Pen 1 pc
6 Wipers 10 pc
7 User Manual 1 pc
8 Calibration Report 1 pc
9 Warranty Card 1 pc
10 Soft carry Pack with straps 1 pc
