FTTH Quickly Drop Cable Termination Mechanical Splice SC/APC Single Mode 60mm Fiber Optic Fast Connector for ONU & Node

Place of Origin	Shanghai
Brand Name	Yogel
Certification	RoSH
Model Number	FAOC2101-2-ASC
Minimum Order Quantity	1
Price	USD 0.1-0.6/ Pieces
Packaging Details	with standard carton box or can be OEM by clients.
Delivery Time	3-5 work days
Payment Terms	L/C, T/T
Supply Ability	200000 pieces per month

Product Details

Color	Green	Application	FTTH FTTB FTTx Network
Connector Type	SC,SC/APC	Certification	ISO9001, RoSH
Insertion Loss (Typ.)	＜0.3 DB (Max. 0.5 DB)	Return Loss	≥ 60 DB
Tension Force	＞30 N	Fiber Type	Single Mode G.657 A2
Reassembly	5 To 10 Times
High Light	60mm Fiber Optic Fast Connectors , FTTH SC/APC Fiber Optic Fast Connectors , 60mm ftth fast connector

Leave a Message

Product Description

FTTH 60mm length SC/APC Single Mode Fast Connector

Mechanical Splice - No need Fusion Splice, Clamp & Polishing, No Expoxy

Quickly Field Assembly/Install

Termination Time No More Than 60 seconds

Description:

FTTH 60mm length SC/APC Single mode fast connector can proivide a quick and easy termination of 3.1x2.0mm (2.3x1.6mm) flat or 3.0mm round drop cable in the field. Options are avaliable for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector removes any requirement for epoxy, adhesive or costly curing ovens and polishing.

Features:

1. Factory-installed fiber stub

2. No epoxy or polishing required

3. Quick and easy fiber termination in the field

4. Eliminates cable excess length and pigtail splice storage

5. Cost-effective

6. Applicable to 3.1x2.0mm (2.3x1.6mm) bow-type flat drop cable and 2.0/3.0mm indoor cable

Specification:

Mode	SM			MM
Polish	UPC	APC		PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.5dB			≤0.25dB

Return Loss	≥50dB		≥60dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 3kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)

Packing information:

	Size	20x16.5x7.5 cm
	QTY	100 pieces
	N.W	0.55 kg
	G.W	0.6 kg

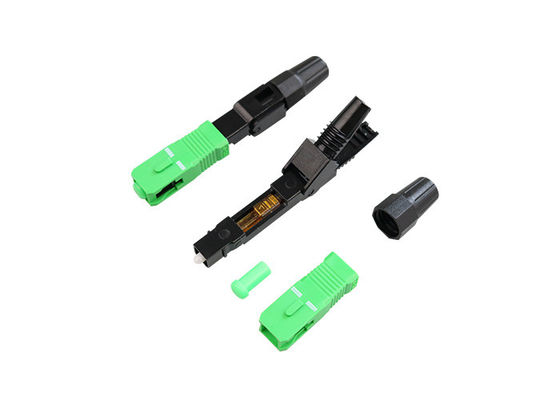

FTTH Quickly Drop Cable Termination Mechanical Splice SC/APC Single Mode 60mm Fiber Optic Fast Connector for ONU & Node 1
