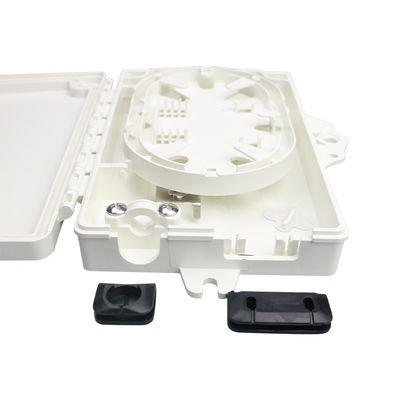

0.2KG SC LC 2core Fiber Optic Termination Box

Product Details

Item No	FDB-WS-ADT-2A	Material	ABS+PC
Product Name	Fiber Access Termination Box	Protection Level	IP-66
Max Capacity	4 Port LC	Cores	2
Weight	0.2KG	Color	Light Gray
High Light	LC 2core Fiber Optic Termination Box , SC 2core Fiber Optic Termination Box , 0.2KG Fiber Optic Termination Box

Leave a Message

Product Description

Description

FDB-WS-ADT-2A fiber access termination box is able to hold up to 2 subscribers. It is used as a

termination point for the feeder cable to connect with drop cable in FTTx network system.

It integrates fiber splicing,splitting, distribution,storage and cable connection in one solid protection box.

Features

* Water-proof design with IP-66 Protection level.

* Integrated with splice cassette and cable management rods.

* Manage fibers in a reasonable fiber radius condition.

* Easy to maintain and extend the capacity.

* Fiber bend radius control more than 40mm.

* Suitable for the fusion splice or mechanical splice.

* 1*2 Splitter can be installed as an option.

* Efficient cable management.

* 2 ports cable entrance for drop cable.

Configuration

Material	Size	Max Capacity			Installation size	Weight	Color
PC+ABS	ABC(mm) 16812032	SC 2 Ports	LC 4 Ports	PLC 1x2(SC)	DE(mm) 15388	0.2kg	Light Gray

LC 2core Fiber Optic Termination Box
