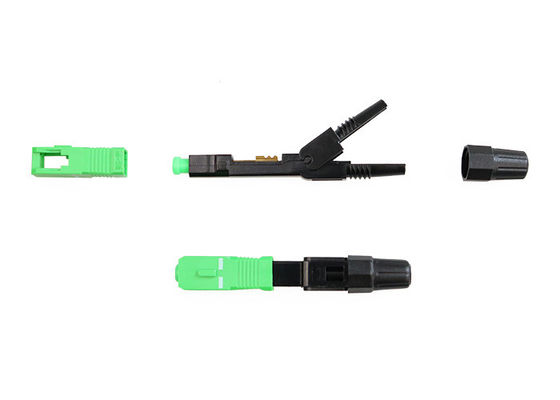

FTTB FTTH 52mm Field Assembly Optical Connector
| Place of Origin | China |
|---|---|
| Brand Name | YOGEL |
| Certification | WRI Testing Technologies-No. 2011-138P |
| Model Number | FAOC2101-2-ASC |
| Minimum Order Quantity | 10pieces |
| Price | USD+0.2-0.5+piece |
| Packaging Details | Plastic box+inner carton+outer carton |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3000+piece+per day |
Product Details
| Insertion Loss | ≤ 0.3dB | Return Loss | Min.50dB (SC/APC) |
|---|---|---|---|
| Fiber Type | G. 657A2 | Fiber Cable Type | 3x2mm Flat Cable,2.0mm 3.0mm Cable,3mm Drop Cable,3.1*2.0mm Butterfly Optical Cable |
| Wavelength | 1310nm, 1490nm, 1550nm | Bare Fiber Fastening Strength | ≥5N (ΔIL≤0.3dB) |
| Tensile Strength | ≥50N (ΔIL≤0.3dB) | Operating Temperature | -40 To 85°C |
| Success Rate | >98%(for The First Time) | Standard | Compliance With YD/T 2341.1-2011 Specifications |
| Application | FTTH FTTB FTTX Network,CATV,Telecommunication | ||
| High Light | FTTB Fiber Optic Fast Connectors,52mm Field Assembly Optical Connector,FTTH Field Assembly Optical Connector |
||
Product Description
FAOC3103-2-USC 52mm Field Assembly Optical Connector FTTH Drop Cable SC Fiber Optic Fast Connector
Features
Field Assembly Optical Connector (FAOC) is designed to enable easy and quick fiber termination on-site with unique V-groove mechanical splice technology and double locking system, therefore providing significant support for users in the construction of FTTH network.
- Compatible with factory-assembled conventional standard SC connectors
- Easy and Quick assembly (within 2minutes) without special tools
- No need electric power, polishing, epoxy or adhesive on site
- Reliable assembly with assembly guide jig
- Available splice inspection with a visible light source or optical power meter on site
- Available to re-assembly process after Termination more than 5 times
Specifications
| Part number | FAOC2101-2-ASC | FAOC2101-2-USC | FAOC2201-2-USC |
| Connector type & Polish | SC/APC | SC/UPC | SC/UPC |
| Fiber type |
Single Mode, ITU-T G.652D / G.657A standard |
MM,OM1,OM2,OM3 | |
| Compatible cable type | 3.1*2.0mm/1.6*2.0mm flat FTTH drop cable (Bow type or “8”type) and 3.0mm round cable | ||
| Wavelength | 1310nm, 1490nm, 1550nm | ||
| Insertion loss |
Typ. ≦0.3dB (max. 0.5dB) |
Typ. <0.2dB (max. 0.5dB) |
Typ. <0.1dB (max. 0.3dB) |
| Return loss |
Typ. ≧60dB (min. 50dB) |
Typ. ≧50dB (min. 40dB) |
Typ. ≧35dB (min. 22dB) |
| Bare fiber fastening strength | ≥5N (ΔIL≤0.3dB) | ||
| Tensile strength | ≥50N (ΔIL≤0.3dB) | ||
| Operating temperature | -40 to 85°C | ||
| Success rate | >98%(for the first time) | ||
| Standard | Compliance with YD/T 2341.1-2011 specifications | ||
