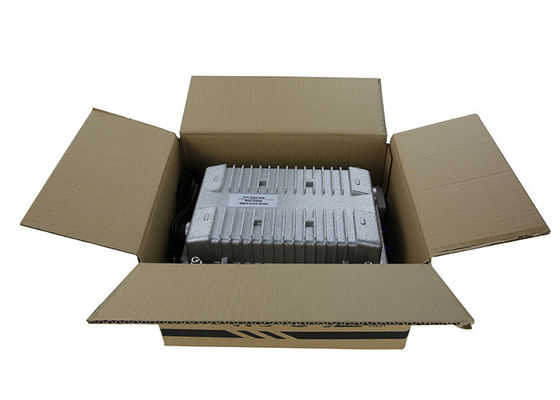

1550nm 220V Catv Fiber Optic Transmitter & Receiver

Place of Origin Shanghai China
Brand Name Yogel or OEM
Certification ISO9000 ,ROHS,CE
Model Number OR409 Four Output Optical Receiver
Minimum Order Quantity 1
Price Negotiate
Packaging Details 1 piece/carton box
Delivery Time 3-5 days after despoit
Payment Terms Western Union, MoneyGram, T/T, L/C
Supply Ability 10000 pcs/ month
Product Details
Product Name CATV Outdoor Optical Fibre Transmitter And Receiver 1550nm Optical Receiver With 220V Power Supply Wavelength 1100-1600nm
Optical Input Power -8dBm~+2dBm AGC Range -8dBm~+2dBm
High Light

220V catv fiber optic transmitter & receiver


1550nm fiber optic transmitter & receiver


220V fiber optic node catv

Leave a Message
Product Description

CATV Outdoor optical fibre transmitter and receiver 1550nm optical receiver with 220V power supply



1. Applications


The four-way output optical receiver is a field rain-proof receiver. It is suitable for users with concentrated buildings or communities or villages. It is suitable for multi-port high-level output distribution network. It is suitablefor areas where power is not convenient, single unit with multiple users. Can be used with ONU or EOC to achieve triple play.

The front stage of the four-way output optical receiver is amplified by a full GaAs MMIC, and the latter stage is a GaAs module amplifier. The adjustable attenuation and equalization are very convenient for construction.

Users can also select more targeted high-quality modules according to actual needs. The optimized circuit design makes the machine achieve high performance index, which is the ideal model for building CATV network.


2. Performance Characteristics


■ High quality waterproof aluminum casing, waterproof level up to IP65 standard.

■ Beautiful and elegant double-shielded panel guarantees good EMC index.

■ Advanced GaAs low noise amplifier circuit to increase device receiving sensitivity.

■ Ten LED light power indications, optical power display is more accurate.

■ The AGC control range is +2~-8dBm, and the output is basically unchanged. CTB and SCO are basically unchanged.

■ AC-60v has independent power supply port.

■ With slotted output plug-in, you can switch branches or assign outputs.

■ Built-in button fuse box for quick and easy replacement.

■ Use T-type + E anti-surge lightning protection circuit to effectively prevent power supply damage.

■ International SNMP Network Management Protocol.


3. 1550nm 220V Catv Fiber Optic Transmitter & Receiver 0Technical Parameters


Wavelength 1100-1600nm CN (Note 3) ≥51dB
Optical input power -8dBm~+2dBm CTB (Note 3) ≥65dB
AGC range -8dBm~+2dBm CSO (Note 3) ≥62dB
Optical return loss >45 dB Power supply voltage AC35V-AC90V&AC140V~265V 或订制
Optical connector FC/APCS&SC/APC Mainboard voltage +24V&+8V
Bandwidth 40~750&862&1006MHz Working Temp. -25℃ ~+55℃
Flatness ±0.75dB@ 40~750MHz ±1dB@ 40~862MHz& Consumption ≤36W
RF output return loss

≥16dB@ 40~550MHz ≥14dB@550~750MHz&


Power supply way

220V@Chinese outlet with 1m power cord

60V@G283 independent power supply port

Gain adjustable range 0-20dB×2 Net size 270×210×100mm
Slope adjustable range 0-18dB Weight with inner box 2.6kg(produce net weight (2.1kg)
Impedance 75Ω Carton gross weight 23kg(10pcs)


4. Schematic Diagram


1550nm 220V Catv Fiber Optic Transmitter & Receiver 1


1550nm 220V Catv Fiber Optic Transmitter & Receiver 2
